easyFlow Closed Transfer System

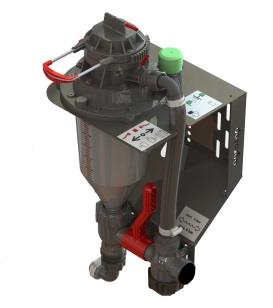

easyFlow M Closed Transfer System
Part Number EFM165
  • Mounts next to sprayer
  • Connects to suction line or chemical inductor
  • Measuring vessel for accurate dosing
  • Built in rinsing system
Tank Adapter - easyFlow
Part Number EFTA55
  • Mounts directly to sprayer tank, nurse tank or chemical inductor
  • Easy to install and operate
  • Built in backflow prevention
  • Gravity flow, no pump needed
  • Large diameters for quick transfer
  • Includes mounting screws, sealing gasket and counter plate. Also includes Banjo cam lever adaptor (075ABP) for water inlet.
Container Adapter - easyFlow
Part Number EFJA65
  • Fits most chemical containers (63mm)
  • Cuts and pushes back the aluminum seal of the PPP container, preventing contamination
  • Has built in rinsing nozzle for fast and easy cleaning of containers and both adaptors
  • Remains attached to PPP container until all chemical is dispensed
  • Multiple Container Adaptors may be used in combination with one Tank Adaptor
Bulk Container Adapter - easyFlow
Part Number EFJA64T
  • Container adaptor with hose barb for connecting to bulk chemical containers.
Wedge Plate Kit - easyFlow
Part Number EFWP71
  • Compensates for inclined tank surfaces, up to 5°
Perforator - easyFlow
Part Number EFP965
  • Tool to pierce containers and speed draining of chemical jugs
  • Especially useful with thick or sticky liquids
  • One way valve prevents chemical vapor escape
  • Partial dosing possible if needed

The easyFlow is the first closed, contamination-avoiding and self-cleaning transfer system for liquid plant protection products from sealed or non-sealed small PPP containers enabling the user to do partial or complete dosing. The easyFlow system is designed to fulfill all standards of environmental protection and operational safety today and in the future.

In comparison to previous systems easyFlow combines following advantages in one compact system:

  • Non-spill connection with highest standards of user and environmental safety
  • Automatic relocking system to prevent unintended opening of the PPP container
  • Continuously adjustable flow rates, enabling exact transfer of partial container volumes
  • Rinsing of accessible parts in contact with Plant Protection Products (PPP) after partial dosing (adapter stays connected to the PPP container)
  • Fast and complete rinsing of empty plant protection product containers
  • No more contamination and cleaning of measuring jugs required
  • Easy installation on all sprayer tanks and on most chemical inductors
