| Description |

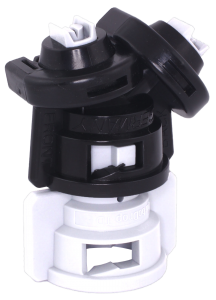

Dual 110° Flat Fan Multi-purpose medium pressure air induction nozzle
The 50° higher flow rate rearward spray of the TADF is designed to improve backside coverage. The 10° forward spray will provide a combination of penetration and front side coverage.
20 - 120 psi Overall pressure range
30 - 60 psi for Systemic Chemicals
60 - 120 psi for Contact Chemicals
Estimated life (60' boom, 20" centers)
20-30,000 acres for TADF
50-80,000 acres for TACDF
Polyacetal Venturi body and nozzle with EPDM seat gasket. |
|
 |
| TADF08 |
|
